Engineering a 1934 Pro Street Street Rod

 !

Click for a 67 Page PDF

Click for YouTube Video Overview of Car

These solid stainless Nerf Bars were designed from an old Hot Rod Magazine photo.  This pattern was made and a friend, Randy Stone, plasma cut them from 1/2 inch stainless using his CNC cutting machine.

The final cut pieces were polished by a company who re-chromes bumpers.  They have the large wheels necessary to do this job efficiently.  Holes were drilled and they mounted in the '34 frame rails

To keep the fenders free and smooth the tail lights were mounted on the stainless bumper.  Stainless '34 Ford repo Cowl Lamps were converted to stop lights.  Because the brackets are angled as is the bumper location, a special shape was needed.

These are the parts plasma cut by hand from 1/8 Stainless.

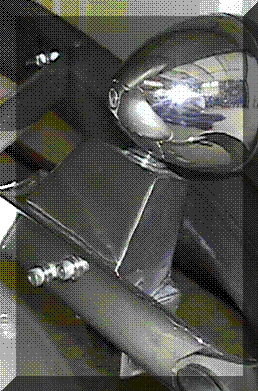

After welding the cut pieces together, all seams were ground smooth.  After hand polishing, the tail lamp assembly was mounted on the bumper brackets.

A small 55 watt amber fog lamp was mounted underneath as a back-up light.  They are also used as rear fog lamps when needed.  They make the car very visible when driving at night.

After switching from the silicon brake fluid supplied with the chassis, the spongy peddle was eliminated.  However the peddle was not returning fully.  TCI indicated a return spring may be needed.  Using a stainless washer, and S hook, a light spring was attached from the peddle arm to the frame.  Works great.

To keep the Simpson Shoulder Harnesses from sliding on the roll bar brace, these aluminum stops were fabricated.  These donut sections were cut with abrasive water jet, then saw cut in half, recesses were added and threaded for stainless Allen bolts.

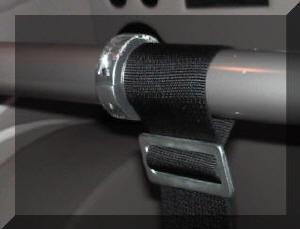

This is one of the finished "Stops" in place showing the polished finish.  The recessed Allen bolt head is visible.

A three piece hose bracket was fabricated from 1 inch aluminum to support heater and air-conditioning hoses. It mounts to hood brace and lightly clamps 4 hoses.  It is shown before the Freon hoses were added.

Spent lots of time on my back while building the Street Rod! Covered floor was a big help! Instead of epoxy,  used 1/8 inch thick tile (Lowes).    Less work than epoxy, not subject to peeling. No acid wash, just a dry clean surface needed.
