Excessive Flow Rates Waste Gas and Cause Turbulent Shielding Creating Inferior Weld Quality

Our Patented Products Limit Maximum Flow That Can Be Set

Picture: ESAB L-33 Flowmeter and  Victor.HRF-1435 Regulator/Flowmeter with "Flow Rate Limiter" Installed.

Fits Most Brands of Flowmeters Without Alterations.  Simply Slips Over the Knob and Locks with a Setscrew.

Download PDF of "Flow Rate Limiter' Fabricator Testimonial Showing Under 1 Month Payback

The Flow Rate Limiter is a Perfect Compliment to Our Patented Gas Saver System.  The Combination Can Cut Total Shielding Gas Use by Significantly Over 50%.

PURCHASE FLOW RATE LIMITER PRODUCTS
Description

Part #;

WAT-



Price

Add

Quantity in

Cart

Flow Rate Limiter (Shown installed on left flowmeter in upper photo)

(Includes billet aluminum body with set screw and locking Allen wrench)

FRL $    35.00

Flow Rate Limiter w/Lock

(Shown installed on right regulator/ flowmeter in upper photo)

(Includes aluminum body with set screw and Allen wrench, blocking bar, brass lock and friction pad)

FRLL $    47.50

Payment Method

We accept most credit cards and use a secure transaction by PayPal.   Select the item then click ADD TO CART BUTTON. You can increase the quantity desired  in the SHOPPING CART.

NO NEED to join PayPal, just use your credit card for a one time transaction by clicking the "Check Out" Box in the Shopping Cart.  Then click the link, "Don't have a PayPal account?" - you'll be directed to enter your credit card information, shipping address etc.

Need Another Way to Pay? Click to Email a Request.

 Click for Shipping & Handling Charges

Note: In Canada our Distributor, Plasmit Inc, sells many of our gas saving products.  Until you're able to purchase from the Plasmit, Inc Web Site, Click to Email Your Product Request.

Note: To maintain focus on "Saving" NOT Selling Shielding Gas, and to keep direct contact with  customers to answer questions and explain the reasons for gas waste, Our Patented "Shielding Gas Saver" Products  are "Not Available in Stores."

LIMITED TIME FREE OFFER

 WAT-UGF

"Understanding and Setting MIG Shielding Gas Flow Rates"

$19.95 VALUE

With Purchase of FRL or FRLL

ADDITIONAL PRODUCT DETAILS



SEE TESTIMONIAL-  Flow Rate Limiter Saves 35%



See Published Article About Gas Savings Achieved by Texas Hydraulics in Trailer Body Builders Magazine Web Site

Turbulent flow pulls air into the gas shield creating excess weld spatter and inferior weld quality.  Flow rates causing  turbulent shielding can be as low as about 40 CFH depending on nozzle size!  We have measured 150 CFH with some flowmeters when the ball is pinned to the top of the flowmeter!  That is not only wasting gas but is definitely pulling air into the shielding gas stream causing excess spatter and inferior weld quality.



To Use Our "Flow Rate Limiter"  Simply:

  1. Set maximum flow rate desired on your flowmeter.

  2. Slip "Flow Rate Limiter" over control knob so the Pin limits further flow increases.

  3. Tighten the setscrew.  If welders are likely not to find and use the small Allen wrench supplied with the product, the FRL is all you need to purchase.

  4. To block access to the Allen screw, our FRLL model includes a Locking System that blocks setscrew access (Note: all brass locks are keyed the same.)

Download

Sales Flyer PDF

FLOW RATE LIMITER

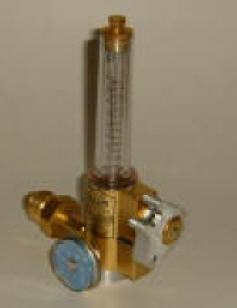

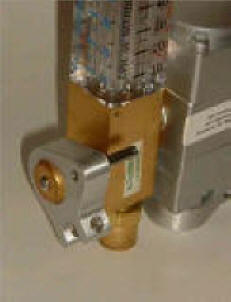

Part Number WAT-FRLL Shown



Fits most popular flowmeters and regulator- flowmeters.



The flowmeter on the left incorporates a typical needle valve to control gas flow rates.  A wide flow adjustment range is possible.  Unfortunately welders often use the adage that; "If some is good more must be better," when setting gas flow rates.  This not only wastes gas but creates a turbulent shielding gas stream pulling moisture laden air into the arc.



In most instances Model FRL  provides a sufficient deterrent to avoid changes in flow and prevents unintentional changes in settings.  A small Allen wrench (supplied with the product) is often not readily available.

A Flow Limiting Locking system is available by ordering Model FRLL.  Model FRLL includes a stainless steel Blocking Bar that slips into holes in the FRL and prevents access to the set screw.  A sold brass Lock in then inserted into a hole in the Blocking Bar to prevent its removal.  Payback can be measured in weeks from gas savings with improved weld quality a bonus.

WAT FRL Mounted on Several Flowmeter

and Regulator/Flowmeter Models

[Numbers in (  ) are footnotes]

Shielding Gas Source

Brand

(note 1)

Model

Figure

Below

Max Flow

Set As Desired (2)

Min Flow (7) (8)
Cylinder ESABTM R-33 (3)

A

X  CFH X  less 17 CFH
Pipeline ESABTM L-33 (3)

A

X  CFH X  less 17 CFH
Cylinder ESABTM R5007, R50-FM, R72-FM

 (4)

B X  CFH X  less 29 CFH or locked at X See note (4)
Pipeline ESABTM L-32 (4) B X  CFH X  less 29 CFH or locked at X See note (4)
Cylinder VictorTM HRF1435 (5) C X  CFH X  less 8 CFH or locked at X See note (5)
Cylinder HarrisTM 355-2 similar  to  X  CFH X  less 15 CFH
Pipeline VictorTM FM372KM (6) D X  CFH X  less 8 CFH

Footnotes:

1) ESAB is a registered trademark of ESAB Welding and Cutting Products; Victor is a registered trademark of Thermadyne Holdings.   Harris is a registered trademark of Harris Calorific, Inc - A Lincoln Electric Company.  This product or WA Technology, LLC are not affiliated with these companies.

2) The Max Flow can be set at any level desired and available with the specific flowmeter before the FRL is locked in place.

3) Valve placement in this model may require mounting with the lock up.

4) It is also possible to mount the lock up and essentially lock the flow at the desired setting.

5) It is also possible to mount the lock facing back toward the body and essentially lock the flow at the desired setting.

6) For this model the normal mounting is with the lock facing up (see photo D).

7) With the Maximum flow set at X CFH the Minimum flow will be X - the value shown.  Also see footnotes 4 and 5 since for some flowmeters the FRL can be positioned to lock the flow at the desired level and not allowing it to change up or down.

8) If it after setting the maximum desired flow, the lower flow setting is more than desired, there is a simple solution.

CLICK to View Reduced Range Solution



A B
C D
Fits Some Other Models



Victor Model HRF2325 regulator (photo left) is an old style with a plastic knob.  The knob diameter from peak to peak is larger than the 0.750 inches of the newer models and will not fit the FRL.  The peaks were simply removed with a Dermal Tool so it fit the hole in the FRL.



A customer reports the FRL fits a Harris Model 355 (photo Left) When set at 45 CFH max they reported being able to reduce flow down to 20 CFH.

Have another model?  Contact us with details to see if it will fit.
